4431436100

Return your SUV’s confident road manners with the authentic front coil spring (OE part 4431436100, supersedes 44314-36100). Cold-wound from high-tensile chrome–silicon steel, the spring supports engine and chassis loads while preserving the factory ride height and damping curve designed for rugged towing and off-road duty.

92.28 EUR
VAT inc.
In Stock 1
Available The item is on site at our office - you can pick it up right away.
PN 4431436100
Make SSANG YONG

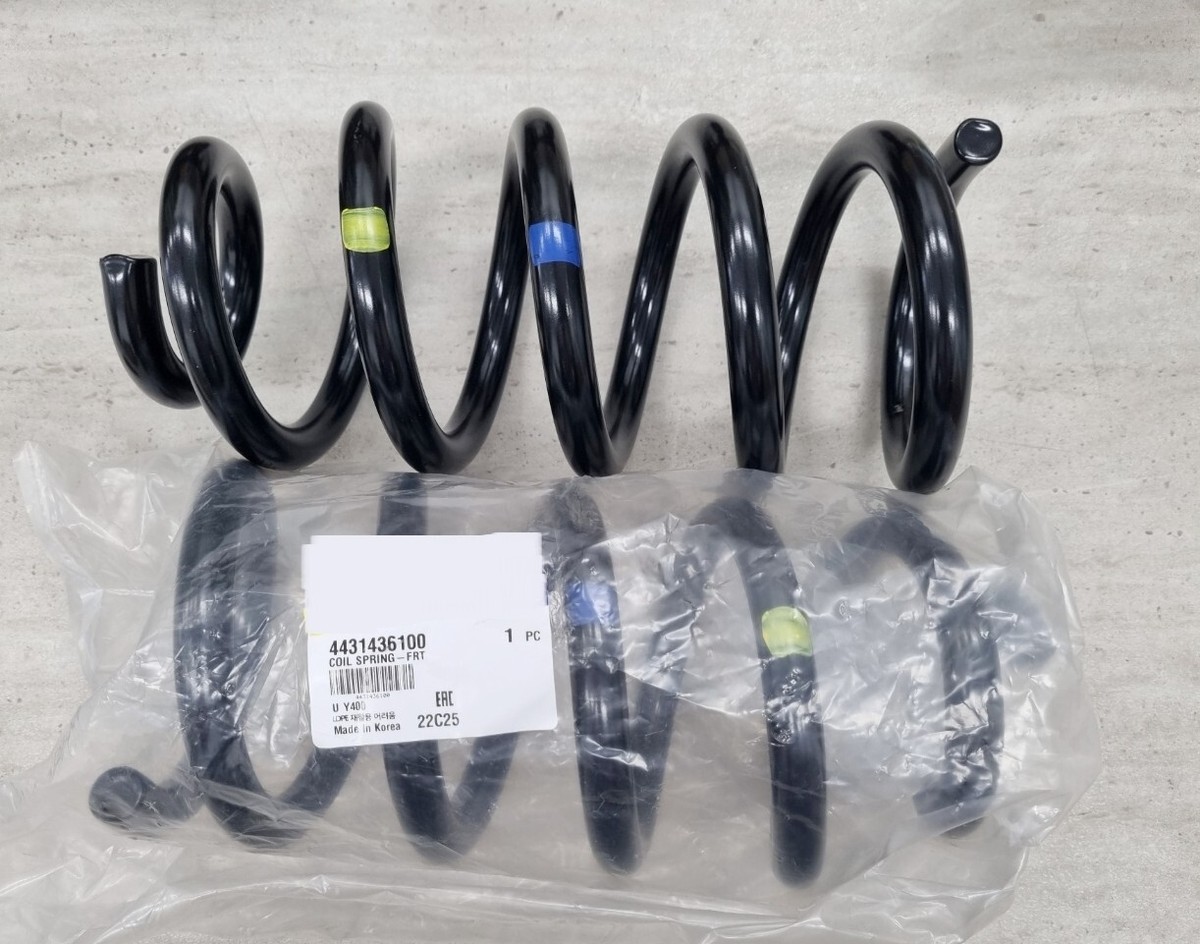

Front Coil Spring 4431436100

Genuine SsangYong Suspension Component

Return your SUV’s confident road manners with the authentic front coil spring (OE part 4431436100, supersedes 44314-36100). Cold-wound from high-tensile chrome–silicon steel, the spring supports engine and chassis loads while preserving the factory ride height and damping curve designed for rugged towing and off-road duty.

Key Benefits

  • Exact OEM rate & length – matches the original 34 N/mm spring constant, keeping corner weights balanced and preventing nose-dive under braking.

  • Corrosion-resistant epoxy coating – black powder layer plus phosphate base shields against winter salt and gravel impacts.

  • Progressive pitch – variable-coil spacing softens small bumps yet firms under heavy compression for composed handling when towing.

  • Direct bolt-in fit – seats perfectly in the factory strut perch; no trimming or preload spacers needed.

  • Warranty backed – protected by SsangYong’s 24-month genuine-parts guarantee.

Vehicle Compatibility

ModelChassisEngine RangeModel YearsAxle
SsangYong Rexton G4Y4002.2 e-XDI / 2.0 GDI-T2017 → 2024Front
SsangYong Musso / Rexton SportsQ200 / Q2012.2 e-XDI2018 → 2024Front


Always confirm by matching the stamp 4431436100 on your original spring or verify via VIN.

Technical Specifications

SpecificationDetail
Part number4431436100 (44314-36100)
MaterialChrome–silicon spring steel (55Si7)
Free length≈ 373 mm
Wire diameter14.5 mm
Spring rate34 N/mm
FinishPhosphate + black epoxy powder coat
Weight≈ 3.4 kg
Warranty24 months


Installation Notes
  1. Support vehicle on a lift; remove strut assembly following workshop manual.

  2. Compress old spring with certified compressor; mark top orientation.

  3. Swap in the new coil, ensuring pigtail seats in lower perch recess.

  4. Torque strut-mount nut to 70 Nm and lower-arm bolts to 160 Nm.

  5. Perform wheel alignment after both front springs are replaced.

Professional installation and paired left/right replacement are strongly recommended to maintain balanced handling.
