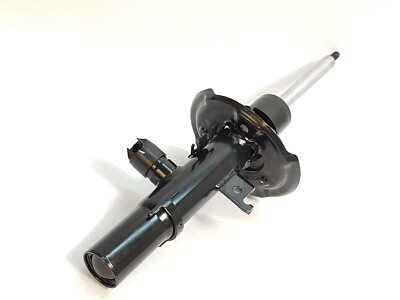

Front Left Shock Absorber 543038400R

Restore factory-fresh suspension performance and vehicle stability with the genuine front left shock absorber (part 543038400R). Designed to Renault’s exact specifications, this gas-charged damper controls body roll, reduces road harshness and ensures precise wheel contact for safe, confident driving.

Key Benefits

• Exact OEM Fit
  Engineered to Renault CAD dimensions for direct bolt-on replacement—no modifications or special tools required.

• Gas-Charged Design
  High-pressure nitrogen chamber prevents cavitation, delivering consistent damping over a wide range of temperatures and loads.

• Corrosion-Resistant Finish
  Durable electrocoat and protective boot shield the piston rod and outer tube from moisture, salt and debris for extended service life.

• Optimized Ride Comfort
  Tuned valving balances rebound and compression damping to absorb bumps smoothly while maintaining steering precision.

• Long-Life Durability
  Hardened chrome piston rod and reinforced seals resist wear, ensuring leak-free operation and reliable performance mile after mile.

Technical Specifications

• Part Number: 543038400R

• Position: Front left (driver’s side)

• Type: Gas-pressurized monotube shock absorber

• Material: High-strength steel tube with chrome-plated piston rod

• Finish: Electrocoat paint and rubber dust boot

• Mounting: Top eyelet and bottom stud arrangement per Renault factory layout

• Operating Temperature: –30 °C … +80 °C

• Warranty: 24 months genuine-parts coverage

Installation Overview

1. Raise Vehicle: Securely lift and support the front end, then remove the wheel and strut mounting nuts.

2. Detach Components: Disconnect brake line brackets or sway-bar links as needed for access.

3. Remove Old Damper: Unbolt the upper spring-plate nuts and lower mounting stud; carefully extract the shock.

4. Fit New Shock: Position the replacement unit, torque the top nuts and bottom bolt to Renault specifications.

5. Reassemble & Test: Reattach any brackets, reinstall the wheel, lower the vehicle and verify smooth suspension travel.
