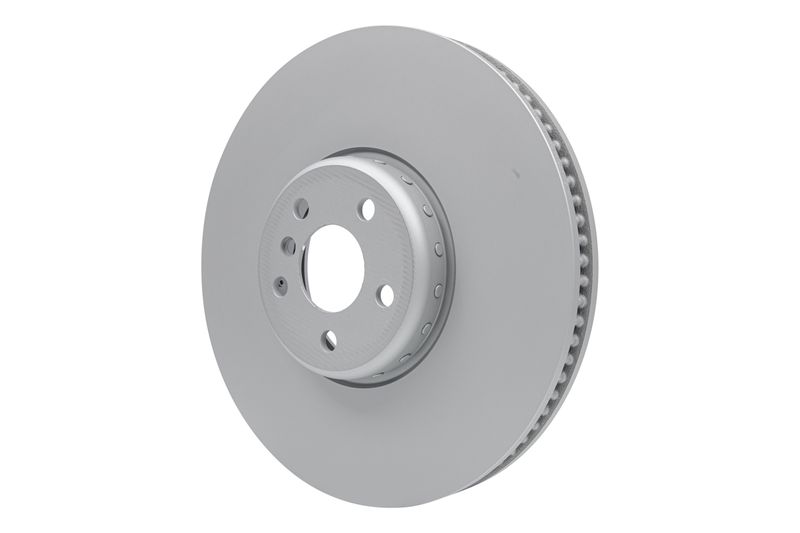

Name: 24013601412 for ATE (49283949)
Brand: ATE
SKU: 49283949
Price: 207.51 EUR
Availability: InStock

Choose your vehicle to find compatible parts

You need authorize to use this functionality

Hello, Log In My Account

0 Basket 0 EUR

View Basket Checkout

Basket empty

Total	0 EUR

Compatible with BMW 7 (G11, G12) , BMW 5 (G30, F90) , BMW 5 Touring (G31) Show more info

207.51 EUR

inc. VAT 21%

In stock 9

Delivery	3 days
PN	24013601412
Make	ATE
EAN	4006633496933

Description
Specification
Alternatives
Compatibility
OE numbers

No description found

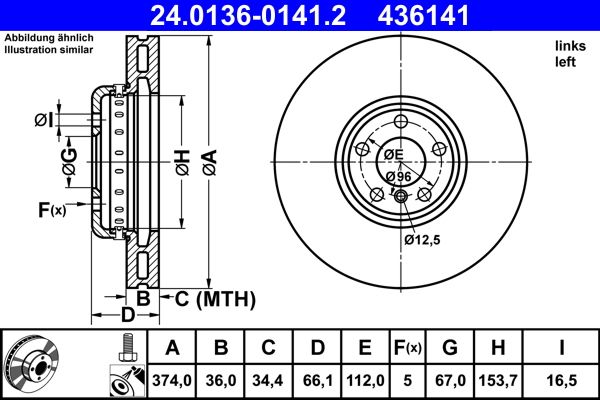

Outer diameter [mm]

374,0

Brake disc thickness [mm]

36,0

Minimum thickness [mm]

34,4

Brake disc type

Two-piece brake disc

Brake disc type

ventilated

Processing

Multicarbon

Surface

coated

Number of splines

cross-reference numbers

24.0136-0140.2

Bolt circle-Ø [mm]

112,0

Height [mm]

66,1

Centering diameter [mm]

67,0

Inner diameter [mm]

153,7

Bore diameter [mm]

16,5

Additional article/Additional info 2

with screws

Test value

E1 90R-02C0391/1034

BMW
- 7 (G11, G12)
  - 750 i, Li xDrive (330kW/449PS)
  - 750 i, Li (330kW/449PS)
  - 740 e, Le (240kW/326PS)
  - 740 Le xDrive (240kW/326PS)
  - 750 d, Ld xDrive (294kW/400PS)
  - 725 d, Ld (170kW/231PS)
  - 745 e, Le Plug-in-Hybrid (290kW/394PS)
  - 745 Le Plug-in-Hybrid xDrive (290kW/394PS)
- 5 (G30, F90)
  - 540 i (250kW/340PS)
  - 540 i xDrive (250kW/340PS)
  - M 550 i xDrive (340kW/462PS)
  - 540 i (265kW/360PS)
  - 540 i xDrive (265kW/360PS)
  - 540 d xDrive (235kW/320PS)
  - M 550 d xDrive (294kW/400PS)
  - M5 (441kW/600PS)
  - M5 Competition (460kW/625PS)
  - 540 i Mild-Hybrid (245kW/333PS)
  - 540 i Mild-Hybrid xDrive (245kW/333PS)
  - 540 d Mild-Hybrid xDrive (250kW/340PS)
  - 545 e Plug-in-Hybrid xDrive (290kW/394PS)
  - M5 CS (467kW/635PS)
- 5 Touring (G31)
  - 540 i xDrive (250kW/340PS)
  - 540 i xDrive (265kW/360PS)
  - M 550 d xDrive (294kW/400PS)
  - 540 d xDrive (235kW/320PS)
  - 540 i Mild-Hybrid xDrive (245kW/333PS)
  - 530 d Mild-Hybrid (210kW/286PS)
  - 540 d Mild-Hybrid xDrive (250kW/340PS)
  - 530 d Mild-Hybrid (183kW/249PS)
- 6 Gran Turismo (G32)
  - 630 i (190kW/258PS)
  - 640 i (250kW/340PS)
  - 640 i xDrive (250kW/340PS)
  - 630 d (195kW/265PS)
  - 630 d xDrive (195kW/265PS)
  - 640 d xDrive (235kW/320PS)
  - 640 i (265kW/360PS)
  - 640 i xDrive (265kW/360PS)
  - 630 i xDrive (190kW/258PS)
  - 630 i Mild-Hybrid (190kW/258PS)
  - 640 i Mild-Hybrid (245kW/333PS)
  - 640 i Mild-Hybrid xDrive (245kW/333PS)
  - 620 d Mild-Hybrid (140kW/190PS)
  - 630 d Mild-Hybrid (210kW/286PS)
  - 630 d Mild-Hybrid xDrive (210kW/286PS)
  - 640 d Mild-Hybrid xDrive (250kW/340PS)
  - 620 d Mild-Hybrid (120kW/163PS)
  - 620 d Mild-Hybrid xDrive (140kW/190PS)
  - 630 d Mild-Hybrid (155kW/211PS)
  - 630 i Mild-Hybrid (180kW/245PS)
- 8 Coupe (G15, F92)
  - 840 d xDrive (235kW/320PS)
  - 840 i (250kW/340PS)
  - 840 i xDrive (250kW/340PS)
  - 840 d Mild-Hybrid xDrive (250kW/340PS)
  - 840 i (245kW/333PS)
  - 840 i xDrive (245kW/333PS)
- 8 Kabriolets (G14, F91)
  - 840 d xDrive (235kW/320PS)
  - 840 i (250kW/340PS)
  - 840 i xDrive (250kW/340PS)
  - 840 d Mild-Hybrid xDrive (250kW/340PS)
  - 840 i (245kW/333PS)
  - 840 i xDrive (245kW/333PS)
- X7 (G07)
  - xDrive 40 i (250kW/340PS)
  - xDrive 30 d (195kW/265PS)
  - xDrive 30 d (155kW/211PS)
  - xDrive 30 d (183kW/249PS)
  - xDrive 40 d Mild-Hybrid (250kW/340PS)
  - xDrive 40 d Mild-Hybrid (155kW/211PS)
  - xDrive 40 i Mild-Hybrid (245kW/333PS)
  - xDrive 40 d Mild-Hybrid (259kW/352PS)
  - xDrive 40 i Mild Hybrid (280kW/381PS)
- 3 (G20, G80, G28)
  - M 340 i xDrive (275kW/374PS)
  - M 340 i xDrive (285kW/387PS)
  - M340 d Mild-Hybrid xDrive (250kW/340PS)
  - M 340 i Mild-Hybrid xDrive (275kW/374PS)
- 3 Touring (G21, G81)
  - M 340 i xDrive (275kW/374PS)
  - M 340 d Mild-Hybrid xDrive (250kW/340PS)
  - M 340 i xDrive (285kW/387PS)
  - M 340 i Mild-Hybrid xDrive (275kW/374PS)
- 8 Gran Coupe (G16, F93)
  - 840 i (250kW/340PS)
  - 840 i xDrive (250kW/340PS)
  - 840 d xDrive (235kW/320PS)
  - 840 d Mild-Hybrid xDrive (250kW/340PS)
  - 840 i (245kW/333PS)
  - 840 i xDrive (245kW/333PS)
- X5 (G05, F95)
  - xDrive 40 d Mild-Hybrid (250kW/340PS)
  - xDrive 30 d Mild-Hybrid (183kW/249PS)
  - xDrive 30 d Mild-Hybrid (210kW/286PS)
  - xDrive 40 i Mild-Hybrid (245kW/333PS)
  - xDrive 30 d Mild-Hybrid (219kW/298PS)
  - xDrive 40 i Mild-Hybrid (280kW/381PS)
  - xDrive 50 e Plug-in-Hybrid (360kW/489PS)
  - xDrive 40 d Mild-Hybrid (259kW/352PS)
- X6 (G06, F96)
  - xDrive 40 d Mild-Hybrid (250kW/340PS)
  - xDrive 30 d Mild-Hybrid (183kW/249PS)
  - xDrive 30 d Mild-Hybrid (210kW/286PS)
  - xDrive 30 d Mild-Hybrid (155kW/211PS)
  - xDrive 40 i Mild-Hybrid (245kW/333PS)
  - xDrive 30 d Mild-Hybrid (219kW/298PS)
  - xDrive 40 i Mild Hybrid (280kW/381PS)
  - xDrive 30 d Mild-Hybrid (164kW/223PS)
  - xDrive 40 d Mild-Hybrid (259kW/352PS)
- 3 Touring Van (G21)
  - M 340 i xDrive (275kW/374PS)
- 4 Coupe (G22, G82)
  - M 440 i Mild-Hybrid xDrive (285kW/387PS)
  - M 440 i Mild-Hybrid xDrive (275kW/374PS)
  - M 440 i Mild-Hybrid (275kW/374PS)
- 4 Kabriolets (G23, G83)
  - M 440 i Mild-Hybrid xDrive (285kW/387PS)
  - M 440 i Mild-Hybrid xDrive (275kW/374PS)
  - M 440 i Mild-Hybrid (275kW/374PS)
- i4 (G26)
  - M50 Visu riteņu piedziņa (400kW/544PS)
- 4 Gran Coupe (G26)
  - M440 i Mild-Hybrid xDrive (275kW/374PS)
  - M440 i Mild-Hybrid (275kW/374PS)
- 2 Coupe (G42, G87)
  - M240 i xDrive (275kW/374PS)
  - M240 i (275kW/374PS)

BMW

34 11 6 875 283 34 10 6 880 077
