Compatible with
LANCIA Y (840_)
,
FIAT PALIO (178_, 171_, 371_)
,
FIAT BRAVA (182_)
Show more info
204.88 EUR
inc. VAT 21%
In stock 2
No description found

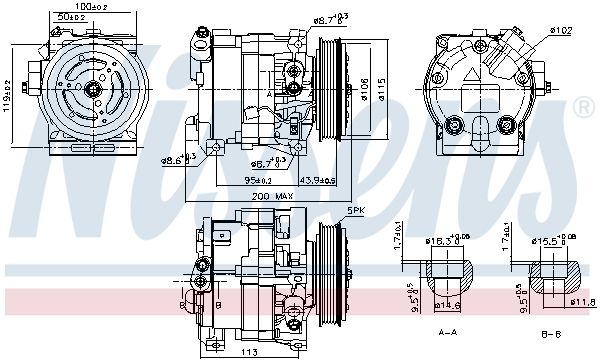

Drive pulley-Ø [mm]
115
Displacement-Compressor [ccm]
86
Compressor ID
SC08
Compressor oil
PAG 46
Plug connector housing shape
rectangular
Additional article/Additional info 2
with PAG compressor oil
Sleeve diameter [mm]
18,3
Outlet diameter [mm]
15,5
Number of grooves
5
Number of pin contacts
"1"
Oil fill quantity [ml]
+120

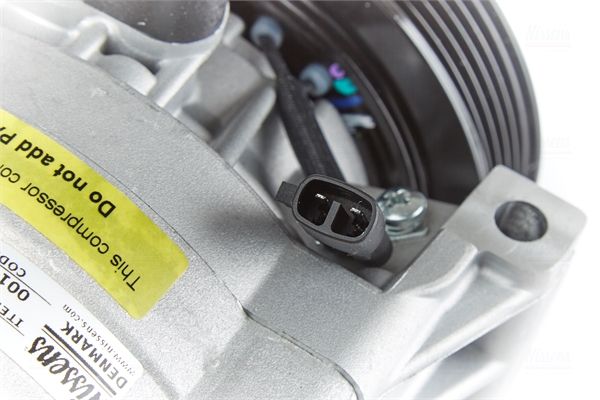

Type of connector
Connector plug
Coolant
R 134a
Voltage [V]
1/2"
Additional article/Additional info 2
with electromagnetic clutch
-
LANCIA
-
Y (840_)
- 1.2 (840AA, 840AF1A) (44kW/60PS)
- 1.2 16V (840AG1A) (59kW/80PS)
-
Y (840_)
-
FIAT
-
PALIO (178_, 171_, 371_)
- 1.2 (54kW/73PS)
- 1.2 (44kW/60PS)
-
BRAVA (182_)
- 1.2 16V 80 (60kW/82PS)
- 1.2 16V 80 (59kW/80PS)
-
BRAVO I (182_)
- 1.2 16V 80 (60kW/82PS)
- 1.2 16V 80 (59kW/80PS)
-
STRADA Pick-up (178_, 278_)
- 1.2 (54kW/73PS)
- 1.2 (44kW/60PS)
-
PUNTO (188_)
- 1.2 60 (188.030, .050, .130, .150, .230, .250) (44kW/60PS)
- 1.2 16V 80 (188.233, .235, .253, .255, .333, .353, .639,... (59kW/80PS)
- 1.2 Bipower (188BXA1A) (44kW/60PS)
-
SIENA (178_, 172_, 372_)
- 1.3 (178CXG1AAM, 178CXG1AAP, 178CXG1AAT) (54kW/73PS)
-
PUNTO Furgons/Hečbeks (188_)
- 1.2 60 (44kW/60PS)
-
PALIO Weekend (178_, 173_, 373_, 374_, 171_)
- 1.2 (178DYA1A, 178DXS1A) (44kW/60PS)
- 1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) (59kW/80PS)
-
PALIO (178_, 171_, 371_)
