LIGHTBAR
382.32 EUR
inc. VAT 21%
Can be ordered
No description found
Mounting type
screwed
Mounting type
Bolted joint
Installation side
front
Lamp type
LED
Voltage [V]
1/2"
Voltage [V]
24
Voltage from [V]
+10
Voltage up to [V]
[30
Rated power [W]
174
Lighting device function
with parking light (LED)
Lighting device function
with high beam lights (LED)
Lighting device function
High-Boost
Luminous flux [lm]
4870
Light flux in boosted (boost) mode [lm]
10246
Theoretical luminous flux [lm]
8400
Theoretical light flux in boost mode [lm]
16800
Number of headlight functions
3
Number of light-emitting diodes
+40
Lighting distribution
Spotlight illumination
Color temperature [K]
5700
Reference number
50]
Housing material
Aluminum
Shell color
black
Frame color
black
Headlamp glass color
transparent
Lighting color
yellow (amber)
Lighting color
white
Diffuser material
PC (Polycarbonate)
Distributor performance
Transparent diffuser
Temperature range from [°C]
[30
Temperature range up to [°C]
+65
Protection type (IP code)
IP69K
Protection type (IP code)
IP68
Form
thin

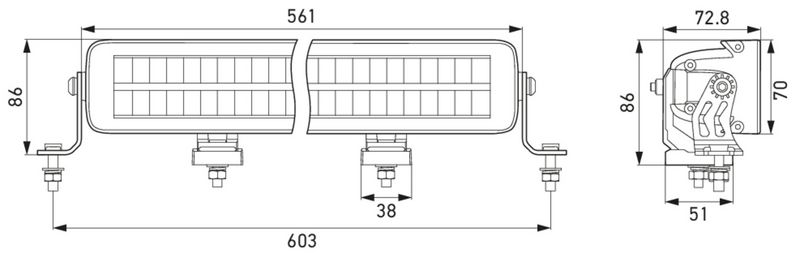

Overall height [mm]
86
Length [mm]
561
Height [mm]
+70
Depth [mm]
68
Length [inches]
21,5
Cable length [mm]
2000
Type of operating permit
Tested ECE
Max. light beam range at 1 lux (main lighting function) [m]
464
max. light beam range at 1 lux (High Boost function) [m]
663
complies with ECE standards
R10
complies with ECE standards
R148
complies with ECE standards
R149
Mass [g]
2550
